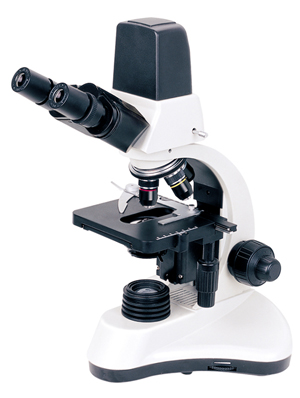

DN-200M/VDN-200M Digital Microscope
Key Specifications/Special Features:





> Specifications and Details
  • High Power Professional Compound Binocular Microscope!
  • Great for Viewing Biological Specimens on Slides!
  • China Microscope, Great Quality Imaging at a Super Low Price!
  • High transmission optical system, combined base and arm design and wide range of accessories make it as ideal instrument for Laboratories, Clinics, Veterinarians, Students, Teachers, and More!
> Standard Outfit



DN-200M

VDN-200M

Viewing Head:

Compensation Free Binocular Head, at 30°, 360° Rotatable

    *     *

Camera System:

CMOS Chip, USB1.0 Output, 300,000 Pixel

    *



High resolution Chip, RCA, S-Vide, USB1.0 Output, 400,000 pixel

        *

Eyepiece:

Wide Field WF10X

    *     *

Objective:

CF High-contrast Objective 4X, 10X, 40X, 100X     *     *

Nosepiece:

Backward Quadruple Nosepiece

    *     *

Stage:

Double Layers Mechanical Stage 140X140mm/75X50mm

    *     *

Focusing:

Coaxial Coarse & Fine Focus Adjustment

    *     *

Condenser:

NA1.25Abbe Condenser with lris Diaphragm and Filter, Rack & pinion Adjustment

    *     *

Illumination:

Halogen Lamp 6V/20W, Brightness Adjustable

    *     *




> Options

  Objective:
>Plan Achromatic Objective4X, 10X, 20X, 40X, 60X, 100X
>Infinite Achromatic Objective System 4X, 10X, 40X, 100X
>Infinite Plan Achromatic Objective System4X, 10X, 20X, 40X, 100X
  Nosepiece:   >Backward Quintuple Nosepiece
  Stage: >Double Layers Mechanical Stage 160X140mm/75X50mm
  Condenser:
>Dark Field Condenser(Dry)NA0.9
>Dark Field Condenser(Oil)NA1.25-1.36
  Collector:
>Kohler Illumination
  Software:
>DN-2 Micro-image Process Software, Protector



> Advanced Features

Connecting Computer by a USB Wire and Easy to Operate

Video and digital signal can be obtained at the microscope stand and displayed on TV set and PC monitor at the same time by high resolution chip
