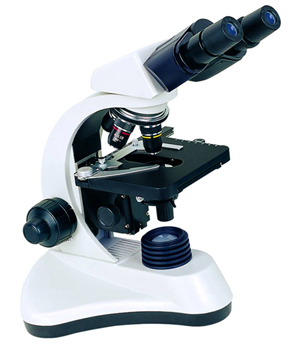

N-200M Biological Microscope
Key Specifications/Special Features:





> Specifications and Details
  • High Power Professional Compound Binocular Microscope!
  • Great for Viewing Biological Specimens on Slides!
  • China Microscope, Great Quality Imaging at a Super Low Price!
  • High transmission optical system, combined base and arm design and wide range of accessories make it as ideal instrument for Laboratories, Clinics, Veterinarians, Students, Teachers, and More!
> Standard Outfit
  • Viewing Head: Compensation Free Binocular Head, Inclined at 30 degree, rotatable 360 degree; 55 to 75mm InterPupillary Distance.
  • Eyepiece: Wide Field Eyepiece WF10X, P16X
  • Objectives: CF High-contrast Objective 4X, 10X, 40X, 100X
  • Nosepiece: Backward Quadruple Nosepiece
  • Stage: Double Layers Mechanical Stage 140X140mm/75X50mm
  • Condenser: NA1.25 Abbe Condenser with lris Diaphragm and Filter, Rack & pinion Adjustment
  • Illumination: Halogen Lamp 6V/20W,Brightness Adjustable
  • Focusing: Coaxial Fine and Coarse Focusing; Coarse Adjustment Travel Range: 20mm; Fine Adjustment Division: 0.002mm.
  • Power supply: AC input 230V or 110V, DC output 6V
> Options

  Viewing head:
>Monocular Head, Inclined at 30 degree, 360 degree Rotatable.
>Compensation Free Trinocular Head, Inclined at 30 degree, 360 degree Rotatable
    Eyepiece:
>Wide Field Eyepiece WF10X W/Pointer
>Wide Field Eyepiece WF10X W/0.1Micrometer
>High Point Eyepiece WF10X/18.5
>Extra Wide Field Eyepiece EW10X/20
>Wide Field Eyepiece WF20X
    Objective:
>Achromatic Objective 4X, 10X, 20X, 40X, 60X, 100X
>Plan Achromatic Objective4X, 10X, 20X, 40X, 60X, 100X
>Infinite Achromatic Objective System 4X, 10X, 40X, 100X
>Infinite Plan Achromatic Objective System4X, 10X, 20X, 40X, 100X
    Nosepiece: >Quintuple Nosepiece
    Stage: >Double Layers Mechanical Stage 160X140mm/75X50mm
    Condenser:
>Dark Field Condenser(Dry)NA0.9
>Dark Field Condenser(Oil)NA1.25-1.36
    Collector:
>Kohler Illumination
>Aspheric Collector
    Other:
>Simple Polarization Set
>Simple Phase Contrast Kit
>Sliding Phase Contrast Kit
>Turret Phase Contrast Kit
>Epi-fluorescent Attachment
>Photography Attachment
>1X & 0.5X Video Attachment
>Drawing Attachment


> Advanced Features

Big Operating Space with Backward Nosepiece, Sharp Image with High Quality Objectives
  Easier Comparing Test with Dual Slides Finger of Mechanical Stage
  Comfortable Handling with Precise Focusing System
