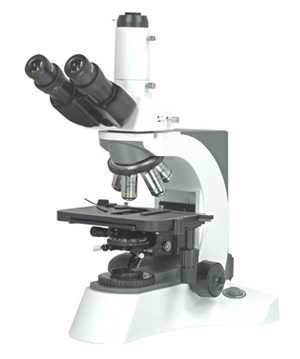

N-800M Biological Microscope
Key Specifications/Special Features:


> Specifications and Details
  • High Power Professional Compound Binocular Microscope!, made in China
  • With lnfinite optical system, kohler lllumination,providing excellent optical quality and making image perfect.
  • With low and forward position coaxial focus system,focusing knobs and brightness adjustable knob within reaching location,stable lntegral structure,reasonable ergonomic design,making operator feel more comfortable and effective.
  • High transmission optical system, combined base and arm design and wide range of accessories make it as ideal instrument for Laboratories, Clinics, Veterinarians, Students, Teachers, and More!
> Standard Outfit
  • Viewing Head: Compensation Free Trinocular Head, Inclined at 30o, rotatable 360o; 48 to 75mm InterPupillary Distance.
  • Eyepiece: Extra Wide Field Eyepiece WF10X/22
  • Objectives: Infinite plan achromatic objective 4x,10x,40x,100x.
  • Nosepiece: lnverse Quintuple Nosepiece
  • Stage: Double Layers Mechanical Stage 185x142mm, Moving Range 75x55mm
  • Condenser: swing condenser N.A.0.9/0.25
  • Kohler Illumination: External lllumination,Halongen Lamp 12v30w
  • Focusing: Coaxial Coarse&Fine Focus Adjustment,Fine Division 0.002mm
  • Power supply: AC input 230V or 110V, DC output 12V
> Options

    Objective:
>Infinite plan achromatic objective 20x
    Nosepiece: >Quintuple Nosepiece
    Video adapter:
>C Mount 1x
>C Monut 0.5x
    Other:
>Polarization Attachment
>Turret Phase Contrast Kit
>Dark field attacment
>Epi-fluorescent Attachment
>Photography Attachment
>Temperature controlled stage




> Advanced Features

Comfortably observing with compensation free trinocular head lnclined at 300.suitable for every observer with wide lnterpupillary                     range 48-75mm
Larger viewing area with extra wide field eyepiece ew10x/22.Focus control with diopter adjustable
Big operating space with backward quintuple nosepiece



Rectangle double layers mechanical stage185x142mm, moving range 75x55mm, comfortable operation with low position adjustable knobs.
  Perfect image with infinite plan achromatic objective   With swing condenser N.A.0.9/0.25, overcoming lllumination asymmetry at low magnification observation
With aspherical condenser and kohler lllumination,providing enough,even and high contrast lllumination for various objective observation. External lllumination,halogen lamp 12v/30w,brightness adjustable
