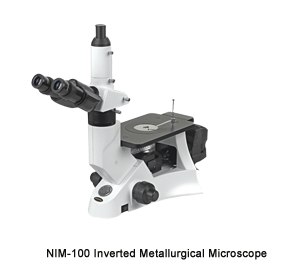

NIM-100 Metallurgical Microscope
Key Specifications/Special Features:


> Specifications and Details
  • China Microscope, with infinitive optical system providing excellent optical functions with the features of stable stand structure advanced stage design and comfortable operation, it is widely used in institute and laboratory to cbserve and identify the structure of various metal and alloy
> Outfit

viewing head trinocular head inclined at 30o, interpupillary48-75mm  *
eyepiece high-point ,extra wide fiele eyepiece EW10×/20  *
nosepiece quintuple nosepiece  *
objective plan achromatic objective 4×, 10×, 20×, 40×  *
focusing coaxial coarse and fine adjustment vertical ob- jective objective movement coarse stroke 37.7mm per rotation fine stroke 0.2mm per rotation  *
kohler lllumination halogen lamp 6V 30W  *
filter blue yellowgreen and ground glass  *
polarization attachment    *
photo attachment    ~
video adapter video adapter with C mount  ~
stage plain stage 160×250mm  *
  attachable mechanical stage x,y coaxial control
moving range 120×78mm
 ~
  auxiliary stage 70×180mm  ~


"*"standard outfit; "~" options
