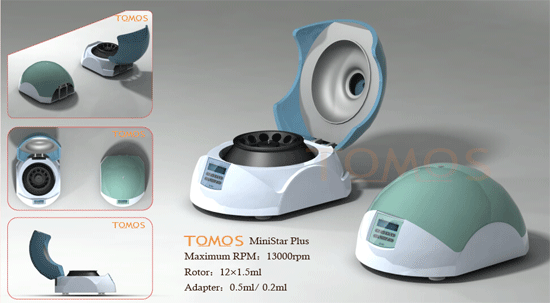

TOMOS MiniStar Plus Centrifuge
TOMOS MiniStar Plus
Product features of centrifuges MiniStar® plus
-
Exceptionally small footprint
-
Extremely quiet
-
Maintenance-free drive
-
Easy-to-follow digital display
-
Low sample heating
-
Separate short-spin key
-
Automatic lid release
-
Built-in power unit
-
Capacity: 12 x 1.5/2 ml tubes
-
Autoclavable rotor (121°C, 20 min.)
-
Optional: adaptor for 0.2 ml PCR* tubes, 0.5 ml microcentrifuge tubes
-
Acceleration and brakingtimes <25 sec. (at max. speed)
-
Stainless steel rotor lid
Additional product features of MiniStar Plus
-
Includes standard rotor made of anodized aluminum
-
Max. speed of 13,400 rpm; max. rcf of 12,100 x g
-
rpm/rcf setting as required
-
Timer can be set up to 99 minutes
-
Continuous centrifugation possible
Power supply: |
230 V/50-60 Hz |
Max. rotational speed: |
13,400 1/min |
Relative centrifugal force (rcf): |
12,100 x g |
Power requirement: |
85W |
Acceleration time to max. speed: |
20 s |
Braking time from max. speed: |
18 s |
Dimensions in cm (W x D x H): |
22.5 x 24 x 12 |
Weight, incl. rotor: |
4.5 kg |
Order Numable: |
3000002 |
Will be supply 2007.10.1
Thermo-Shaker for microtubes--MS100
Thermo-Shaker MS-100 is an ideal instrument for intensive mixing of
samples in the regulated temperature conditions.
Mixing and heating modes can be used both simultaneously and
independently i.e. the device can work as a shaker and as a thermostat.
The main body of the Mixing Block can be used with different kinds of
blocks.MS-100 is applicable for DNA analysis, extraction of lipids and
other cell components, DNA library creation, PCR amplification,
pre-denaturation in electrophoresis, serum solidification etc. |
Features:
1.As
it is equipped with various optional mixing blocks, the instrument can
adapt to different tubes & wells to cope with experimental needs. It is
easy to replace the metal blocks and is very simple to clean and
sterilize. Customized blocks are available to suit your specific demands
2.LCD
display. It Easy to setup and use
3.Simultaneous
display of set and actual time, temprature and speed
4.Over
heating protection device ensures safety & reliability
5.Temperature
can be calibrated to meet user's needs
6.Beep-signal
/ Stop after program completion
7.Can
be produced for OEM customers
|
Specification:
Model |
MS-100 |
Temp. Setting Range |
10℃
~ 105 ℃ |
Temp. Control Range |
Room Temp. +5℃ ~
100 ℃ |
Temp. Control Accuracy |
<±
0.5 ℃ |
Display Accuracy |
0.1
℃ |
Heating Time (from 20 ℃
to 100 ℃) |
<20min |
Shaking Speed |
100rpm-1400rpm |
Mixing Orbit |
2mm |
Timing Range |
1 min ~ 99h59min |
Standard Block |
A-BLOCK: 96 well Plate; B-BLOCK:0.5ml x 54
C-BLOCK: 1.5ml x 35; D-BLOCK: 2ml x 35 |
Power supply |
AC220V 50/60Hz 150W |
Dimension (mm) |
354
x 240 x 170 |
Net Weight |
6kg |
Thermo-Shaker for microplates--mb100-4p
Thermo-shaker is designed for shaking 2-4 standard 96-well
microplates in the thermostating mode. |
Features:
1.Microprocessor controlled time, speed and temperature
2.Simultaneous display of set and actual time, temperature and shaking
speed
3.Beep-signal and stop of shaking motion after program completion
4.Heating platform for standard microtest plate
5.22V 2A).±External
powers supply (AC220V
6.Soft start、Easy
to setup and use |
Specification:
1.Temperature range: RT+5℃~60℃
2.Uniformity over the platform:≤±0.5℃
3.Shaking speed 100-1200 rpm/min(increment:1
RPM)
4.Orbit: 2mm
5.Independent timer with sound signal:0 - 100 hrs (increment 1 min)
6.22V 2A±Power
(external power supply): AC220V
7.Platform capacity: 4 microtest plates
8.Platform dimensions: 215x300 mm
9.Overall dimensions: 400×400×180 mm
10.Weight, not more:9Kg |
The Bacti-Cinerator sterilizer—HM-3000
The Bacti-Cinerator sterilizer sterilizes microorganisms utilizing
infrared heat produced by a ceramic core element. The ceramic element
contains no asbestos and ensures maximum sterility without splatter
across the work surface area. Complete sterilization occurs within 5-7
seconds at optimum sterilizing temperature of 1500ºF (815.6ºC). The
small footprint makes the Bacti-Cinerator sterilizer an ideal instrument
for anaerobic and aerobic chambers alike. Several user friendly
accessories are also available for the Bacti-Cinerator sterilizer . |
Features
1.Sterilizes needles, loops, and culture tube
mouths in five to seven seconds at optimum sterilizing temperature of
815.6°C (1500°F)
2.Ceramic
funnel tube enclosed in stainless-steel perforated guard and
stainless-steel support stand
3.For
AC220V 50/60Hz
|
Performance
1.The
center high-temperature:815±50°C
2. The
Max-diameter
of sterilizer goods: φ14mm
3.The length of sterilizer: 100mm
4.Dimension: 130W x102D x 180H
5.Net
weigh: 1.3Kg
|
Incubator—MK10/20
The
Incubator (Dry Bath) is a
microprocessor-controlled product using
advanced thermoelectric technique. With this technique, more stable
and accurate temperature control is achieved. Replacement is
convenient with optional metal modules of various specifications
configured for different types of test tubes. |
Features:
1. LCD display. It easy to setup and
use
2. Simultaneous display of set and
actual time, temprature
3. As it is equipped with various
optional blocks, the instrument can adapt to different
tubes & wells to cope with experimental needs. Tt is easy to
replace the metal
blocks and is very simple to clean and
sterilize. Customized blocks are available to
suit your specific demands
4. Reliable design with inner extra temperature protection
5. Heave of the block makes block change easy and convenient
6. Temperature deflection adjusting meet with different demands
7.
Microprocessor controlled incubation time and temperature. Excellent
temperature
accuracy and uniformity across the block
8. Beep-signal / Stop after program completion
9. Can be produced for OEM customers
|
Specification:
Type |
MK-10 |
MK-20 |
Temperature controlled range |
RT+5 ℃
~100 ℃ |
0~100 ℃ |
Time setting range |
1min ~ 99h59min |
1 min ~ 99h59min |
Temperature accuracy |
± 0.5 ℃ |
± 0.5℃ |
Temperature display accuracy |
0.1
℃ |
0.1
℃ |
Heating time(from 20 to 100℃
) |
12min |
20min |
Cooling time (from 20 to 0℃
) |
/ |
20min |
Standard block |
A-block: 96 x 0.2ml
B-block: 54 x 0.5ml
C-block: 35 x 1.5ml
D-block: 35 x 2.0ml |
A-block: 96 x 0.2ml
B-block: 54 x 0.5ml
C-block: 35 x 1.5ml
D-block: 35 x 2.0ml |
Heating mode |
Heater |
TE Module |
Cooling mode |
/ |
TE Module |
Power supply |
AC220V 50/60Hz 120W |
AC220V 50/60Hz 150W |
Dimension (mm) |
300x210x180 |
300x210x180 |
Net Weight |
2.5kg |
4.6kg |
|
Description |
Max. speed [rpm] |
Max. RCF [x g] |
Weight [kg] |
Dimensions (W x D x H) [mm] |
Capacity [number x ml] |
Price |
Mini centrifuge |
7.200 |
2.160 |
1 |
160 x 180 x 110 |
8*1.5ml/16*0.2ml |
148 € |
Mini high speed centrifuge |
13.500 |
12.100 |
6 |
245*240*120 |
12*1.5ml/0.5ml/0.2ml |
551 € |
Benchtop low speed centrifuge |
4.000 |
1.790 |
6 |
320 x 320 x 300 |
6*20ml |
128 € |
Benchtop low speed centrifuge |
4.000 |
1.790 |
6 |
320 x 320 x 300 |
6*20ml |
137 € |
Benchtop low speed centrifuge |
4.000 |
1.790 |
6 |
320 x 320 x 300 |
6*20ml |
161 € |
Benchtop low speed centrifuge |
4.000 |
2.130 |
13,5 |
410 x 340 x 370 |
12*20ml |
170 € |
Benchtop low speed centrifuge |
5.000 |
3.130 |
17 |
410 x 380 x 370 |
|
226 € |
Fixed-angle rotor |
5.000 |
3.130 |
|
|
8*15ml |
161 € |
Fixed-angle rotor |
5.000 |
3.130 |
|
|
16*10ml |
161 € |
Benchtop low speed centrifuge |
5.000 |
3.130 |
15 |
410 x 380 x 370 |
|
369 € |
Fixed-angle rotor |
5.000 |
3.130 |
|
|
8*15ml |
161 € |
Swing-out rotor |
5.000 |
3.130 |
|
|
12*15ml |
161 € |
Fixed-angle rotor |
5.000 |
3.130 |
|
|
16*10ml |
161 € |
Benchtop low speed centrifuge |
4.000 |
2.130 |
11,5 |
283 x 335 x 265 |
|
369 € |
Fixed-angle rotor |
4.000 |
2.130 |
|
|
12*10/15ml |
161 € |
Benchtop high speed centrifuge |
14.000 |
17.530 |
15 |
283 x 335 x 265 |
|
635 € |
Fixed-angle rotor |
14.000 |
17.530 |
|
|
24*1.5/2.0ml |
190 € |
Adaptor |
14.000 |
17.530 |
|
|
24*0.5ml |
120 € |
Adaptor |
14.000 |
17.530 |
|
|
24*0.2ml |
120 € |
Benchtop high speed centrifuge |
16.000 |
16.880 |
14 |
283 x 335 x 265 |
|
612 € |
Fixed-angle rotor |
16.000 |
16.880 |
|
|
12*1.5ml |
161 € |
Fixed-angle rotor |
16.000 |
15.740 |
|
|
18*0.5ml |
161 € |
Fixed-angle rotor |
12.000 |
10.630 |
|
|
12*5ml |
304 € |
Adaptor |
16.000 |
16.880 |
|
|
12*0.2ml |
120 € |
Benchtop large capacity centrifuge |
4.000 |
2.770 |
30 |
610 x 550 x 500 |
|
822 € |
Swing-bucket rotor |
4.000 |
|
|
|
20*10ml |
226 € |
Swing-bucket rotor |
4.000 |
|
|
|
16*15ml |
331 € |
Swing-bucket rotor |
4.000 |
|
|
|
8*50ml |
387 € |
Swing-bucket rotor |
4.000 |
|
|
|
4*100ml |
471 € |
Benchtop large capacity centrifuge |
4.200 |
3.040 |
48 |
700 x 650 x 500 |
|
1.314 € |
Swing-bucket rotor |
4.200 |
|
|
|
36*10ml |
226 € |
Swing-bucket rotor |
4.200 |
|
|
|
8*50ml |
387 € |
Swing-bucket rotor |
4.200 |
|
|
|
4*250ml |
612 € |
Benchtop centrifuge |
5.000 |
3640 |
15 |
410 x 380 x 370 |
|
591 € |
Swing-bucket rotor |
5.000 |
|
|
|
8*15ml |
261 € |
Microhematocrit centrifuge |
12.000 |
15.300 |
13 |
410 x 340 x 410 |
24*1.5ml |
468 € |
Microhematocrit centrifuge |
12.000 |
15.300 |
13 |
320 x 320 x 300 |
24*3ml |
647 € |
High speed refrigerant centrifuge |
15.000 |
20.600 |
45 |
330 x 420 x 275 |
|
3.069 € |
Fixed rotor |
15.000 |
20.600 |
|
|
24*2ml |
541 € |
Adaptor |
15.000 |
20.600 |
|
|
24*0.5ml |
120 € |
Adaptor |
15.000 |
20.600 |
|
|
24*0.2ml |
120 € |
High speed refrigerant centrifuge |
15.000 |
20.600 |
55 |
330 x 420 x 275 |
|
3.771 € |
Fixed rotor |
15.000 |
20.600 |
|
|
24*2ml |
541 € |
Adaptor |
15.000 |
20.600 |
|
|
24*0.5ml |
120 € |
Adaptor |
15.000 |
20.600 |
|
|
24*0.2ml |
120 € |
Fixed rotor |
15.000 |
18.600 |
|
|
12*5ml |
584 € |
Fixed rotor |
12.000 |
13.000 |
|
|
12*10ml |
640 € |
High speed refrigerant centrifuge |
18.000 |
21.300 |
60 |
1000 x 535 x 540 |
|
4.894 € |
Fixed rotor |
18.000 |
21.300 |
|
|
12*1.5ml |
261 € |
Fixed rotor |
15.000 |
20.600 |
|
|
24*2ml |
541 € |
Fixed rotor |
15.000 |
18.600 |
|
|
12*5ml |
584 € |
Fixed rotor |
12.000 |
13.000 |
|
|
12*10ml |
640 € |
Fixed rotor |
10.000 |
10.500 |
|
|
6*50ml |
864 € |
Large capacity refrigerant centrifuge |
|
|
240 |
740 × 900 × 1080 |
|
15.845 € |
Swing-bucket rotor |
6.000 |
6.410 |
|
|
6*500ml |
1.454 € |
Swing-bucket rotor |
4.200 |
5.010 |
|
|
6*1000ml |
1.454 € |
|
