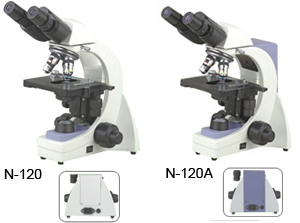

N-120A Biological Microscope
Key Specifications/Special Features:


> Specifications and Details
  • Sharp Image Display with Excellent Optical Function.
  • Small Space Occupancy with Integral Stand Design, Low Environment Requirement with Anti-mould Technology
  • Comfortable Operation with Ergonomic Design Principle
  • High quality China Microscope
> Outfit

 Viewing Head:
 Compensation Free Binocular Head, Inclined at 30°,
 Interpupillary Distance 55-75mm

 *

 Compensation Free Trinocular Head, Inclined at 30°,
 Interpupillary Distance 55-75mm
  ~
 Eyepiece:  Wide Field Eyepiece WF10X/18  *
 Objective:  Achromatic Objective 4X, 10X, 40X, 100X  *
   Plan Achromatic Objective 4X, 10X, 40X, 100X  ~
 Nosepiece:  Quadruple Nosepiece  *
 Stage:  Double Layers Mechanical Stage 140X140mm/75X50mm  *
 Condenser:  NA1.25 Abbe Condenser with Iris Diaphragm and Filter  *
   Dark Field Condenser (Dry) NA0.75  ~
   Dark Field Condenser (Dry) NA1.25  ~
 Focusing:
 Coaxial Coarse & Fine Focus Adjustment System,
 Range 24mm, Fine Division 2μm
  *
 Illumination:  Halogen Lamp 6V20W, Brightness Adjustable  *
 Phase Contrast Kit:  Single Phase Contrast Kit  ~
   Sliding Phase Contrast Kit  ~
   Turret Phase Contrast kit  ~
 Polarization Set:  Simple Polarization Set  ~
 Epi-fluorescent Attachment:  Epi-fluorescent Attachment  ~
 Video Adapter:  C Mount -1×  ~
   C Mpunt0.5×  ~
"*"standard outfit; "~" options
> Advanced Features

Available to observe the specimen movement from rear of the body
  Comfortable Operation with Low Position Coarse and Fine Adjustment Knobs
  higher Contrast and Sharper Image with High Quality Objectives
