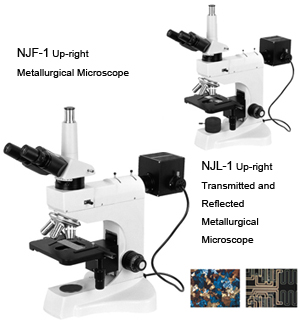

| NJF-1 |
Metallurgical
Microscope |
| Key
Specifications/Special Features: |
| |
|
>
Specifications and Details |
- China
Metallurgical microscope is widely used for
metallurgical, mineral identification and
crystal, integrated circuit examination and
research. It is available to be supplied
with transmitted illumination, imaging and
viewing system and accessories as a
biological microscope for medical institute
use.
|
|
>
Outfit
|
|
|
|
|
NJF-1 |
NJL-1 |
|
Viewing
Head |
Trinocular Head, Inclined at
30°,Vertical photo/video port (100%-0%
or 20%-80%) |
* |
* |
|
Eyepiece |
WF10X/18 |
* |
* |
|
|
WF10X/18
with 0.1mm micrometer and cross hair |
* |
* |
|
Nosepiece |
Quintuple
nosepiece (3 holes for bright field
objective use,2 holes for dark field
objective use) |
* |
* |
|
Objective |
Infinitive Plan Achromatic Objective 4X,
10X, 20X, 40X, 80X |
* |
* |
|
|
Infinitive Plan Achromatic 40X, 100X
(for biological use) |
|
* |
|
Polarization System |
Built-in
polarizer and Analyzer |
* |
* |
|
Bright/Dark Viewing Field System |
Built-in
Conversion Slide for Bright/dark Field
Illumination |
* |
* |
|
Diaphragm |
Epi-illuminator with Iris Aperture
Diaphragm and Iris Field Diaphragm |
* |
* |
|
Stage
|
Double
Layer Mechanical Stage, Size 185X142mm |
* |
* |
|
Illumination |
Lamp
Center adjustable, T-H lamp 12V50W,
Brightness adjustable |
* |
* |
|
|
Built-in,
T-H lamp 12V20W , Brightness adjustment |
|
* |
|
Collector |
Center
adjustable Kohler collector with field
iris diaphragm |
|
* |
|
Option |
Eyepiece
WF8X/18, WF12.5X/18.5 |
|
|
attachment |
|
|
1X or
0.5X Video attachment |
|
|
Specimen
Presser |
"*"standard
outfit; "~" options |
|
|
|
|
