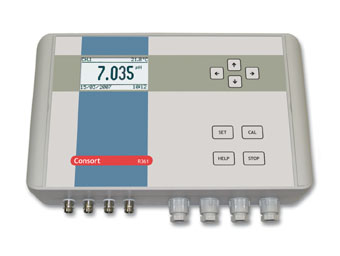

R361
industrial controller for pH, mV, conductivity, dissolved oxygen and temperature
2 measurement channels
2 temperature channels


A high resolution graphic screen with white backlight indicates all measurements and operating parameters such as temperature, date and time.
Allows simultaneous control of all parameters in the same solution.
Multi-point (1...5) calibration of pH electrodes with any of nine pre-programmed standards.
Multi-point (1...3) calibration of conductivity electrodes for increased linearity with any of three pre-programmed standards.
Separate HELP key guides you at any moment in the language of your choice (English, Dutch, French, German).
All necessary GLP-procedures are on board.
Powerful set-up option permits to customise the controller to the needs of the user.
Password protection prevents any unauthorised access to the instrument.
Robust dust and splash-proof cabinet for wall mounting.


Specifications
pH: -2...+16 pH
mV: ± 2000 mV
Conductivity: 0...2000 mS/cm
Dissolved oxygen: 0...60mg/l, 0...600 %
Air pressure: 600...1300 hPa

Temperature: -30...+130°C
Resolution: 0.001 pH, 0.1 mV, 0.001µS/cm, 0.01 mg/l, 0.1 ppt, 0.1°C
| download leaflet | download manual |



R362
industrial controller for pH, mV, conductivity, dissolved oxygen and temperature
2 measurement channels
2 temperature channels


A high resolution graphic screen with white backlight indicates all measurements and operating parameters such as temperature, date and time.
Allows simultaneous control of all parameters in the same solution.
Multi-point (1...5) calibration of pH electrodes with any of nine pre-programmed standards.
Multi-point (1...3) calibration of conductivity electrodes for increased linearity with any of three pre-programmed standards.
Separate HELP key guides you at any moment in the language of your choice (English, Dutch, French, German).
All necessary GLP-procedures are on board.
Powerful set-up option permits to customise the controller to the needs of the user.
Password protection prevents any unauthorised access to the instrument.
Continuously stores the last 12000 values + date and time at a programmable interval.
Two programmable 4-20 mA recorder outputs.
Two-way communication with any computer using RS485.
Robust dust and splash-proof cabinet for wall mounting.
Optional data acquisition software enables to view, store and edit the measurements in your computer.


Specifications
pH: -2...+16 pH
mV: ± 2000 mV
Conductivity: 0...2000 mS/cm
Dissolved oxygen: 0...60mg/l, 0...600 %
Air pressure: 600...1300 hPa
Temperature: -30...+130°C
Resolution: 0.001 pH, 0.1 mV, 0.001µS/cm, 0.01 mg/l, 0.1 ppt, 0.1°C
| download leaflet | download manual |



R363
industrial controller for pH, mV, conductivity, dissolved oxygen, free chlorine and temperature
2 measurement channels
1 free chlorine channel
1 temperature channel


A high resolution graphic screen with white backlight indicates all measurements and operating parameters such as temperature, date and time.
Allows simultaneous control of all parameters in the same solution.
Multi-point (1...5) calibration of pH electrodes with any of nine pre-programmed standards.
Multi-point (1...3) calibration of conductivity electrodes for increased linearity with any of three pre-programmed standards. Separate HELP key guides you at any moment in the language of your choice (English, Dutch, French, German).
All necessary GLP-procedures are on board.
Powerful set-up option permits to customise the controller to the needs of the user.
Password protection prevents any unauthorised access to the instrument.
Continuously stores the last 12000 values + date and time at a programmable interval.
Two programmable 4-20 mA recorder outputs.
Two-way communication with any computer using RS485.
Robust dust and splash-proof cabinet for wall mounting.
Optional data acquisition software enables to view, store and edit the measurements in your computer.


Specifications
pH: -2...+16 pH
mV: ± 2000 mV
Conductivity: 0...2000 mS/cm
Dissolved oxygen: 0...60mg/l, 0...600 %
Air pressure: 800...1100 hPa
Free chlorine: 0...10 ppm
Temperature
: -30...+130°C

Resolution: 0.001 pH, 0.1 mV, 0.001µS/cm, 0.01 mg/l, 0.1 ppt, 0.1°C
| download leaflet | download manual |
