The freeze dryer uses a technical method that freeze the watery element
in advance, then sublimates its moisture content under the vacuum state
to obtains the dry goods. Goods are easier for long-term preservation
after the freeze-drying processing, and they can be restored to the
original shape and form after being watered with the original
biochemical peculiarity. For the hot sensitive substance such as
antibiotic, the vaccine, the blood product, the enzyme hormone and other
biological preparations, the freeze-drying technology can demonstrate
its advantages.
The LGJ series freeze dryer uses the forced-air cooling condensation
type refrigeration system, the stainless steel structure, the
transparent drying chamber. It is more convenient for the observation of
the entire process of freeze-drying.
（1）LGJseries of table freeze dryer
LGJ freeze dryer is a set of mini-type table equipment , which is
suitable for the freeze-dry test and smack production of lab samples.
This series has four types: Ordinary, Top-press, Multi-pipeline
ordinary, Multi-pipeline Top-press.
Specialty:
●match the green environmental protection of international standard
●LCD manifestation、Chinese interface, show freeze-drying curve
●big openings of the cold trap, without coil pipe inside, have
pre-freeze faction
●Imported refrigerant compressor, high capability of water-capture, low
noisy
●all stainless steel wall, can bear corrosion, clean easily;
●transparence the clock cover type dry room, safe, keep a view
●stainless steel sample holder, can option the space between layers
●small cubage, convenient operation ;
●valve with nitrogen is optional. |
| |
|
|
|
|
|
|
|
|
|
|
LGJ－10B Ordinary |
|
|
|
| |
Technique index: |
|
|
|
| |
Temperature：<-50℃, -80℃ (optional) |
|
|
|
| |
vacuum :<15Pa |
|
|
|
| |
Freeze-dry acreage：0.07-0.12m2 |
|
|
|
| |
Water-Capture Capability：3Kg/24h |
|
|
|
| |
Capacity：0.7～1.2L |
|
|
|
| |
Size: 580×560×340(mm) |
|
|
|
| |
Material Tray: the diameter of material-dry tray is180mm, three layers;
four layers; install the material about 900ml(material thickness 10mm),
or placed 135 bottles, the diameter of 22mm. |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
Freeze dry time: about 24h(material thickness 10 mm) |
|
|
|
| |
|
|
N/W:68KG G/W:83KG |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
LGJ－10B top-press |
|
|
|
|
|
Technique index: |
|
|
|
|
|
Temperature：<-50℃, -80℃ (optional) |
|
|
|
|
|
vacuum :<15Pa |
|
|
|
|
|
Freeze-dry acreage：0.07-0.12m2 |
|
|
|
|
|
Water-Capture Capability：3Kg/24h |
|
|
|
|
|
Capacity：0.7～1.2L |
|
|
|
|
|
Size: 580×560×340(mm) |
|
|
|
|
|
Material Tray: the diameter of material-dry tray is180mm, three layers;
four layers; install the material about 900ml(material thickness 10mm),
or placed 135 bottles, the diameter of 22mm. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
Freeze dry time: about 24h(material thickness 10 mm) |
|
|
|
|
|
|
|
N/W:70KG G/W:85KG |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
LGJ－10B multi-pipeline
Ordinary |
|
|
|
|
|
Technique index: |
|
|
|
|
|
Temperature：<-50℃, -80℃ (optional) |
|
|
|
|
|
vacuum :<15Pa |
|
|
|
|
|
Freeze-dry acreage：0.07-0.12m2 |
|
|
|
|
|
Water-Capture Capability：3Kg/24h |
|
|
|
|
|
Capacity：0.7～1.2L |
|
|
|
|
|
Size: 580×560×340(mm) |
|
|
|
|
|
Material Tray: the diameter of material-dry tray is180mm, three layers;
four layers; install the material about 900ml(material thickness 10mm),
or placed 135 bottles, the diameter of 22mm. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
Freeze dry time: about 24h(material thickness 10 mm) |
|
|
|
|
|
|
|
N/W:70KG G/W:85KG |
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
LGJ－10B multi-pipeline
top-press |
|
|
|
|
|
Technique index: |
|
|
|
|
|
Temperature：<-50℃, -80℃ (optional) |
|
|
|
|
|
vacuum :<15Pa |
|
|
|
|
|
Freeze-dry acreage：0.07-0.12m2 |
|
|
|
|
|
Water-Capture Capability：3Kg/24h |
|
|
|
|
|
Capacity：0.7～1.2L |
|
|
|
|
|
Size: 580×560×340(mm) |
|
|
|
|
|
Material Tray: the diameter of material-dry tray is180mm, three layers;
four layers; install the material about 900ml(material thickness 10mm),
or placed 135 bottles, the diameter of 22mm. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
Freeze dry time: about 24h(material thickness 10 mm) |
|
|
|
|
|
|
|
N/W:75KG G/W:90KG |
|
|
|
| |
|
|
|
|
|
|
|
|
|
|

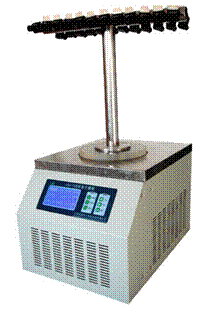

LGJ－10B multi-pipeline T |
|
|
|
|
|
Technique index: |
|
|
|
|
|
Temperature：<-50℃, -80℃ (optional) |
|
|
|
|
|
vacuum :<15Pa |
|
|
|
|
|
Freeze-dry acreage：0.07-0.12m2 |
|
|
|
|
|
Water-Capture Capability：3Kg/24h |
|
|
|
|
|
Capacity：0.7～1.2L |
|
|
|
|
|
Size: 580×560×340(mm) |
|
|
|
|
|
Have 24 rubber seal ring, can arrange 24 ampere bottles, the special
used rotor can be manufactured. Be the same with ampere pipe; conserve
the bacteria, epiphyte and other Microorganism. Adopt the ampere seal up
for keeping way in the laboratory. After freeze dry, the sample installs
in small ampere. It have long keeping time, small variations, convenient
to storage and applied to the many fields |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
N/W:70KG G/W:85KG |
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
LGJ－12B Ordinary |
|
|
|
| |
Technique index: |
|
|
|
| |
Temperature：<-50℃, -80℃ (optional) |
|
|
|
| |
vacuum :<15Pa |
|
|
|
| |
Freeze-dry acreage：0.09-0.18m2 |
|
|
|
| |
Water-Capture Capability：3Kg/24h |
|
|
|
| |
Capacity：0.7～1.2L |
|
|
|
| |
Size: 560×460×(720+450)(mm) |
|
|
|
| |
Sample Tray：Stainless steel sample holder with special design, can
option the space between layers, can enactment the number of layers, the
diameter of material-dry tray is 200mm,four layers; install the material
about 1500ml(material thickness 10mm). |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
Freeze dry time: about 24h(material thickness 10 mm) |
|
|
|
|
|
|
|
N/W:85KG G/W:96KG |
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
LGJ－12B top-press |
|
|
|
| |
Technique index: |
|
|
|
| |
Temperature：<-50℃, -80℃ (optional) |
|
|
|
| |
vacuum :<15Pa |
|
|
|
| |
Freeze-dry acreage：0.09-0.18m2 |
|
|
|
| |
Water-Capture Capability：3Kg/24h |
|
|
|
| |
Capacity：0.7～1.2L |
|
|
|
| |
Size: 560×460×(720+450)(mm) |
|
|
|
| |
Sample Tray：Stainless steel sample holder with special design, can
option the space between layers, can enactment the number of layers, the
diameter of material-dry tray is 200mm,four layers; install the material
about 1500ml(material thickness 10mm). |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
Freeze dry time: about 24h(material thickness 10 mm) |
|
|
|
|
|
|
|
N/W:87KG G/W:98KG |
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
LGJ－12B Ordinary multi-pipeline |
|
|
|
| |
Technique index: |
|
|
|
| |
Temperature：<-50℃, -80℃ (optional) |
|
|
|
| |
vacuum :<15Pa |
|
|
|
| |
Freeze-dry acreage：0.09-0.18m2 |
|
|
|
| |
Water-Capture Capability：3Kg/24h |
|
|
|
| |
Capacity：0.7～1.2L |
|
|
|
| |
Size: 560×460×(720+450)(mm) |
|
|
|
| |
Sample Tray：Stainless steel sample holder with special design, can
option the space between layers, can enactment the number of layers, the
diameter of material-dry tray is 200mm,four layers; install the material
about 1500ml(material thickness 10mm). |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
Freeze dry time: about 24h(material thickness 10 mm) |
|
|
|
|
|
|
|
N/W:87KG G/W:98KG |
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
LGJ－12B top-press multi-pipeline |
|
|
|
| |
Technique index: |
|
|
|
| |
Temperature：<-50℃, -80℃ (optional) |
|
|
|
| |
vacuum :<15Pa |
|
|
|
| |
Freeze-dry acreage：0.09-0.18m2 |
|
|
|
| |
Water-Capture Capability：3Kg/24h |
|
|
|
| |
Capacity：0.7～1.2L |
|
|
|
| |
Size: 560×460×(720+450)(mm) |
|
|
|
| |
Sample Tray：Stainless steel sample holder with special design, can
option the space between layers, can enactment the number of layers, the
diameter of material-dry tray is 200mm,four layers; install the material
about 1500ml(material thickness 10mm). |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
Freeze dry time: about 24h(material thickness 10 mm) |
|
|
|
|
|
|
|
N/W:90KG G/W:100KG |
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
LGJ－18B Ordinary |
|
|
|
| |
Technique index: |
|
|
|
| |
Temperature：<-55℃, -80℃ (optional) |
|
|
|
| |
vacuum :<15Pa |
|
|
|
| |
Freeze-dry acreage：0.18-0.27m2 |
|
|
|
| |
Water-Capture Capability：6Kg/24h |
|
|
|
| |
Capacity：2～3.5L |
|
|
|
| |
Size: 660×560×(955+450)(mm) |
|
|
|
| |
Stainless steel sample holder with special design, can option the space
between layers, can enactment the number of layers, the diameter of
material-dry tray is 240mm,four layers; install the material about
2000ml(material thickness 10mm)。 |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
Freeze dry time: about 24h(material thickness 10 mm) |
|
|
|
|
|
|
|
N/W:85KG G/W:96KG |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
LGJ－18B Top-press |
|
|
|
| |
Technique index: |
|
|
|
| |
Temperature：<-55℃, -80℃ (optional) |
|
|
|
| |
vacuum :<15Pa |
|
|
|
| |
Freeze-dry acreage：0.18-0.27m2 |
|
|
|
| |
Water-Capture Capability：6Kg/24h |
|
|
|
| |
Capacity：2～3.5L |
|
|
|
| |
Size: 660×560×(955+450)(mm) |
|
|
|
| |
Stainless steel sample holder with special design, can option the space
between layers, can enactment the number of layers, the diameter of
material-dry tray is 240mm,four layers; install the material about
2000ml(material thickness 10mm)。 |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
Freeze dry time: about 24h(material thickness 10 mm) |
|
|
|
|
|
|
|
N/W:87KG G/W:98KG |
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
LGJ－18B Ordinary multi-pipeline |
|
|
|
| |
Technique index: |
|
|
|
| |
Temperature：<-55℃, -80℃ (optional) |
|
|
|
| |
vacuum :<15Pa |
|
|
|
| |
Freeze-dry acreage：0.18-0.27m2 |
|
|
|
| |
Water-Capture Capability：6Kg/24h |
|
|
|
| |
Capacity：2～3.5L |
|
|
|
| |
Size: 660×560×(955+450)(mm) |
|
|
|
| |
Stainless steel sample holder with special design, can option the space
between layers, can enactment the number of layers, the diameter of
material-dry tray is 240mm,four layers; install the material about
2000ml(material thickness 10mm)。 |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
Freeze dry time: about 24h(material thickness 10 mm) |
|
|
|
|
|
|
|
N/W:87KG G/W:98KG |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
LGJ－18B Top-press multi-pipeline |
|
|
|
| |
Technique index: |
|
|
|
| |
Temperature：<-55℃, -80℃ (optional) |
|
|
|
| |
vacuum :<15Pa |
|
|
|
| |
Freeze-dry acreage：0.18-0.27m2 |
|
|
|
| |
Water-Capture Capability：6Kg/24h |
|
|
|
| |
Capacity：2～3.5L |
|
|
|
| |
Size: 660×560×(955+450)(mm) |
|
|
|
| |
Stainless steel sample holder with special design, can option the space
between layers, can enactment the number of layers, the diameter of
material-dry tray is 240mm,four layers; install the material about
2000ml(material thickness 10mm)。 |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
Freeze dry time: about 24h(material thickness 10 mm) |
|
|
|
|
|
|
|
N/W:90KG G/W:100KG |
|
|
|
| |
|
|
|
|
|
|
|
|
LGJ-18s heat freeze dryer is a set of mini-type
equipment, which is suitable for the freeze-dry test and smack
production of lab samples. The freeze dryer with the programmable
control and baggage shelf to heat up, it uses the PID adjustment,
precisely controls temperature; the man-machine contact surface uses the
large screen liquid crystal screen. By the curve and the data, it
provides to the user related freezing and drying advancement and more
information at the same time, also it has communication connection on
the top
machine.
●Liquid crystal display: Clapboard temperature curve, cry trapping
temperature curve, sample temperature curve.
●deposited 32 program, make 36 segment each programs, correction program
data in computing, memorize the drying curve finally.
●tangibly screen control the function keys, no operation keys, reduce
the wrong operate, improve the instrument of reliability and stability.
●circuitry adopt PID adjustment, make the control accuracy more
exactitude.
●imported compressor, syntactic refrigerant, good fast, good dryness.
|
|
| |
| |
| |
| |
| |
| |
| |
| |
|
|
|
|
|
|
|
|
|
|
LGJ－18BS Ordinary |
|
|
|
| |
Technique index: |
|
|
|
| |
Temperature：<-60℃, -80℃ (optional) |
|
|
|
| |
vacuum :<15Pa |
|
|
|
| |
Freeze-dry acreage：0.18-0.27m2 |
|
|
|
| |
Water-Capture Capability：6Kg/24h |
|
|
|
| |
Capacity：2～3.5L |
|
|
|
| |
Size: 660×560×(955+450)(mm) |
|
|
|
| |
Stainless steel sample holder with special design, can option the space
between layers, can enactment the number of layers, the diameter of
material-dry tray is 240mm,four layers; install the material about
2000ml(material thickness 10mm)。 |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
Freeze dry time: about 24h(material thickness 10 mm) |
|
|
|
|
|
|
|
N/W:85KG G/W:96KG |
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
LGJ－18BS Top-press |
|
|
|
| |
Technique index: |
|
|
|
| |
Temperature：<-60℃, -80℃ (optional) |
|
|
|
| |
vacuum :<15Pa |
|
|
|
| |
Freeze-dry acreage：0.18-0.27m2 |
|
|
|
| |
Water-Capture Capability：6Kg/24h |
|
|
|
| |
Capacity：2～3.5L |
|
|
|
| |
Size: 660×560×(955+450)(mm) |
|
|
|
| |
Stainless steel sample holder with special design, can option the space
between layers, can enactment the number of layers, the diameter of
material-dry tray is 240mm,four layers; install the material about
2000ml(material thickness 10mm)。 |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
Freeze dry time: about 24h(material thickness 10 mm) |
|
|
|
|
|
|
|
N/W:87KG G/W:98KG |
|
|
|
|
|
|
|
|
|
|
|
|
|
LGJ－18BS Ordinary multi-pipeline |
|
|
|
| |
Technique index: |
|
|
|
| |
Temperature：<-60℃, -80℃ (optional) |
|
|
|
| |
vacuum :<15Pa |
|
|
|
| |
Freeze-dry acreage：0.18-0.27m2 |
|
|
|
| |
Water-Capture Capability：6Kg/24h |
|
|
|
| |
Capacity：2～3.5L |
|
|
|
| |
Size: 660×560×(955+450)(mm) |
|
|
|
| |
Stainless steel sample holder with special design, can option the space
between layers, can enactment the number of layers, the diameter of
material-dry tray is 240mm,four layers; install the material about
2000ml(material thickness 10mm)。 |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
Freeze dry time: about 24h(material thickness 10 mm) |
|
|
|
|
|
|
|
N/W:87KG G/W:98KG |
|
|
|
|
|
|
|
|
|
|
|
|
|
LGJ－18BS Top-press multi-pipeline |
|
|
|
| |
Technique index: |
|
|
|
| |
Temperature：<-60℃, -80℃ (optional) |
|
|
|
| |
vacuum :<15Pa |
|
|
|
| |
Freeze-dry acreage：0.18-0.27m2 |
|
|
|
| |
Water-Capture Capability：6Kg/24h |
|
|
|
| |
Capacity：2～3.5L |
|
|
|
| |
Size: 660×560×(955+450)(mm) |
|
|
|
| |
Stainless steel sample holder with special design, can option the space
between layers, can enactment the number of layers, the diameter of
material-dry tray is 240mm,four layers; install the material about
2000ml(material thickness 10mm)。 |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
Freeze dry time: about 24h(material thickness 10 mm) |
|
|
|
|
|
|
|
N/W:90KG G/W:100KG |
|
|
|
| |
|
|
|
|
|
|
|
|
Medium-sized Freeze Dryer The LGJ series freeze
dryer with the programmable control and baggage shelf to heat up, it
uses the PID adjustment, precisely controls temperature, the man-machine
contact surface uses the large screen liquid crystal screen. By the
curve and the data, it provides to the user related freezing and drying
advancement and more information at the same time, also it has
communication connection on the top machine.
Main character:
●Imported all-seal compressor set, high capability of water-capture;
●Cold trap is all stainless steel wall structure, capacity of sample
pre-freezing;
●Heating element is made of special material, reduce the trivial
operation of layer tem control, make sure the consistency of sample heat
up;
●Multi-path temp-control protect, ensure that the security of sample;
●Connect with computer,observe and mimeograph temperature curves any
time;
●Custom-built manual top-press equipment,easy to operate, reliable;
●LGJ200 is a patent product, it cost less energy and dry more areas;
●Each drying chamber could be operated separately;
●Middle freeze dryer that it is fit for middle experience or mass
product.
|
|
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
|
|
|
|
|
|
|
|
|
|
LGJ-30 Ordinary |
|
|
|
| |
Technique index: |
|
|
|
| |
Temperature：<-60℃ |
|
|
|
| |
vacuum :<13Pa |
|
|
|
| |
Freeze-dry acreage：0.4 m2 |
|
|
|
| |
Water-Capture Capability：10Kg/24h |
|
|
|
| |
Capacity：4～5.6L |
|
|
|
| |
material tray:φ280×7 (mm) |
|
|
|
| |
Freeze dry time: about 24h(material thickness 10 mm) |
|
|
|
|
|
|
|
N/W:150KG G/W:170KG |
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
LGJ-30 Top-press |
|
|
|
| |
Technique index: |
|
|
|
| |
Temperature：<-60℃ |
|
|
|
| |
vacuum :<13Pa |
|
|
|
| |
Freeze-dry acreage：0.3 m2 |
|
|
|
| |
Water-Capture Capability：10Kg/24h |
|
|
|
| |
Capacity：4～5.6L |
|
|
|
| |
material tray:φ280×5 |
|
|
|
| |
Freeze dry time: about 24h(material thickness 10 mm) |
|
|
|
|
|
|
|
N/W:150KG G/W:170KG |
|
|
|
|
|
|
|
|
|
|
|
|
|
LGJ-50 Ordinary |
|
|
|
| |
Technique index: |
|
|
|
| |
Temperature：<-60℃ |
|
|
|
| |
vacuum :<13Pa |
|
|
|
| |
Freeze-dry acreage：0.8m2 |
|
|
|
| |
Water-Capture Capability：15Kg/24h |
|
|
|
| |
Capacity：4～5.6L |
|
|
|
| |
material tray:φ370×7 |
|
|
|
| |
Freeze dry time: about 24h(material thickness 10 mm) |
|
|
|
|
|
|
|
N/W:150KG G/W:170KG |
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
LGJ-50 Top-press |
|
|
|
| |
Technique index: |
|
|
|
| |
Temperature：<-60℃ |
|
|
|
| |
vacuum :<13Pa |
|
|
|
| |
Freeze-dry acreage：0.5 m2 |
|
|
|
| |
Water-Capture Capability：15Kg/24h |
|
|
|
| |
Capacity：4～5.6L |
|
|
|
| |
material tray:φ370×5 |
|
|
|
| |
Freeze dry time: about 24h(material thickness 10 mm) |
|
|
|
|
|
|
|
N/W:150KG G/W:170KG |
|
|
|
+32 1658 9045
+32 1650 9045
